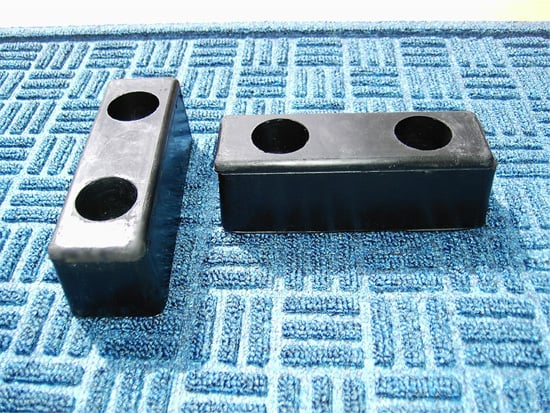

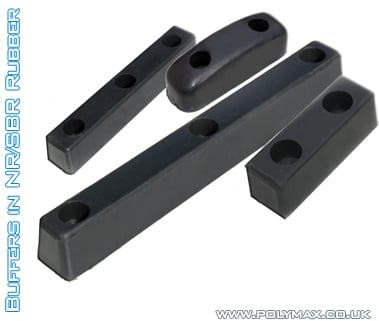

Rubber Buffers in NR/SBR Rubber

for use on vehicles, ramps, loading bays and doors

Rubber bumpers are available various sizes, made from NR/SBR rubber these buffers can be used on boats, lorries and docking bays. The rubber buffers guard against impacts and the bumpers are bolted directly to the application, via predrilled counter sunk holes.

TECHNICAL SPECIFICATION (NR/SBR)[pdf]

TECHNICAL PROPERTIES (QUICK VIEW):

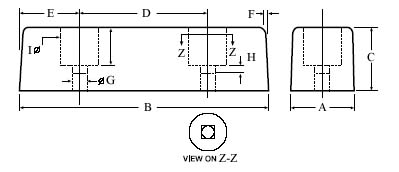

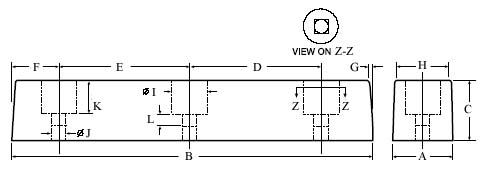

PROFILE DRAWING (QUICK VIEW):

Part No.	A	B	C	D	E	F	G	H	I	J	K	L	Material
6007100	50	302	50	110	110	35	2	45	30	12	28	10	Natural SBR Rubber
6007101	50	405	50	168	168	35	5	40	30	12	25	10	Natural SBR Rubber
6007102	50	247	50	88	88	35	2	46	31	10	28	8	Natural SBR Rubber

TECHNICAL PROPERTIES (QUICK VIEW):

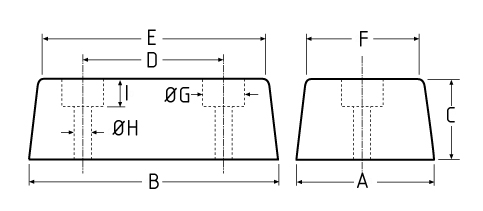

PROFILE DRAWING (QUICK VIEW):

Part No.	A	B	C	D	E	F	G	H	I	Material
6007103	50	148	50	75	35	2	12	5	30	Natural SBR Rubber
6007104	50	200	50	102	48	2	12	6	30	Natural SBR Rubber
6007202	100	360	110	200	80	10	12	6	30	Natural SBR Rubber
6007201	80	250	90	120	65	5	12	6	30	Natural SBR Rubber

TECHNICAL PROPERTIES (QUICK VIEW):

PROFILE DRAWING (QUICK VIEW):

Part No.	A	B	C	D	E	F	G	H	Material
6007105	41	127	43	65	31	19	19	8	Natural SBR Rubber

TECHNICAL PROPERTIES (QUICK VIEW):

PROFILE DRAWING (QUICK VIEW):

Part No.	A	B	C	D	E	F	G	H	I	Material
6007106	305	330	100	235	178	38	50	22	20	Natural SBR Rubber

TECHNICAL SPECIFICATION (TYRECORD) [pdf]

TECHNICAL PROPERTIES (QUICK VIEW):

PROFILE DRAWING (QUICK VIEW):

Part No.	A	B	C	D	E	F	G	Weight(kg)	Material
6009504	115	765	75	100	38	29	13.5	6.5	Tyrecord HI-Fibre

*Dimension can vary they are typical only

*New Saturday Opening Hours*
Opening Hours: Mon-Fri: 8am-6pm Sat: 8.30am-5pm


Material	: NR/SBR
Colour	: Black
Hardness	: Approx. 78° Shore A
Density:	: Approx. 1.9 (gcm- ³)
Max. temp	: +70°C (avoid prolonged exposure)
Min. temp	: -20°C (avoid prolonged exposure)


Material	: NR/SBR
Colour	: Black
Hardness	: Approx. 78° Shore A
Density:	: Approx. 1.9 (gcm- ³)
Max. temp	: +70°C (avoid prolonged exposure)
Min. temp	: -20°C (avoid prolonged exposure)


Material	: NR/SBR
Colour	: Black
Hardness	: Approx. 78° Shore A
Density:	: Approx. 1.9 (gcm- ³)
Max. temp	: +70°C (avoid prolonged exposure)
Min. temp	: -20°C (avoid prolonged exposure)


Material	: NR/SBR
Colour	: Black
Hardness	: Approx. 78° Shore A
Density:	: Approx. 1.9 (gcm- ³)
Max. temp	: +70°C (avoid prolonged exposure)
Min. temp	: -20°C (avoid prolonged exposure)


Material	: NR/SBR
Colour	: Black
Hardness	: Approx. 78° Shore A
Max. temp	: +70°C (avoid prolonged exposure)
Min. temp	: -20°C (avoid prolonged exposure)
Tensile strength	: 2.5-3.4 MPa
Elongation at break	: 5-15%
Specific Gravity	: 1.13-1.18
