SCM High Deflection Motor Mount

Not Available to Buy Online - Please contact us for more information.

 +44 (0) 1420 474123
 sales@polymax.co.uk

Be the first to review this product

Quick Overview

SCM mounts are ideal for use as shock mounts or high isolation in static applications such as small pumps, engines and light electronic equipment.

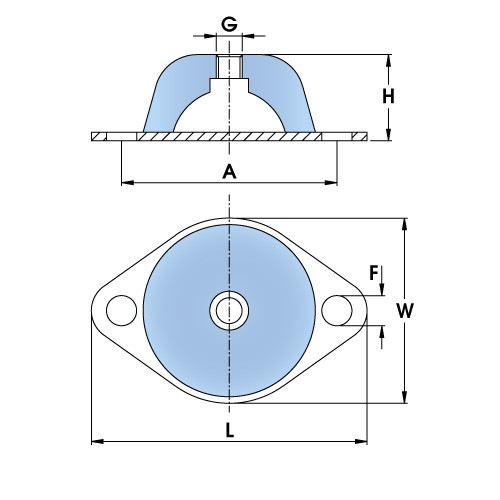

Polymax SCM-type Flange Mounts | Oval Base
Article No. H
(mm)
L
(mm)
W
(mm)
G A
(mm)
F
(mm)
Base Shape
Shear/Compr. Mount 64x20 M6 SCM6420 206443M6507Oval
Shear/Compr. Mount 88x25 M8 SCM8525 258859M8668Oval
Shear/Compr. Mount 88x25 M10 SCM8525M10 258859M10668Oval
Shear/Compr. Mount 100x27 M8 SCM10027 2710070M8767Oval
Shear/Compr. Mount 115x35 M10 SCM11435 3511576M109210Oval
Shear/Compr. Mount 136x40 M10 SCM13640 4013696M1011011.5Oval
Shear/Compr. Mount 151x45 M10 SCM15145 45151101M1012411.5Oval
Shear/Compr. Mount 150x63 M12 SCM15063 63150150M1212014.5Square
Shear/Compr. Mount 200x85 M16 SCM20085 85200200M16160x16014.5Square
Shear/Compr. Mount 310x160 M24 SCM310160 160310310M24250x25018Square

Details

SCM mounts are ideal for use on static and mobile shock applications such as small pumps, engines and fragile and light electronic equipment.

Features:
  • Achieves high isolation values (both active and passive) of low frequency vibration
  • Attenuates shock loads due to its deflection capacity ideal for mounting sensitive electronics and lights in transit.
  • Available in stainless steel metal for food & mining industry applications
Applications:
  • Fans
  • Pumps
  • Stationary generator sets
  • Vibrating screens
  • Bulk bin load and discharge units
  • Computers, security cameras
  • Packaging and transit case mountings

45 ShA 60 ShA
Part No MAX Kg's MAX mm MAX  Kg's MAX mm
SCM6420 3.5 3 9 3.5
SCM 8525 20 4 40 4.5
SCM 8525M10 20 4 40 4.5
SCM 10027 30 4.5 55 5.0
SCM 11435 40 6.0 65 8.5
SCM 13640 70 8.5 130 11
SCM 15063 302 14 500 13
SCM 15145 130 10.0 220 10.0
SCM 20085 380 18 750 18
SCM 310160 1400 45 2500 50

Additional Information

Material Natural Rubber (NR)
*Dimensions can vary, they are typical only.
