Modular Hose Ramps from Polymax


Ideal vehicle

Polymax rubber modular hose ramps, cable protectorsModular Hose Ramps



Polymax Modular Hose Ramps made from strong NR/SBR rubber, gives great protection and ideal for running over water pipes gas pipes, electrical cabling and more. Ribbed top surface to improve traction for vehicles.

Click Images To Enlarge...

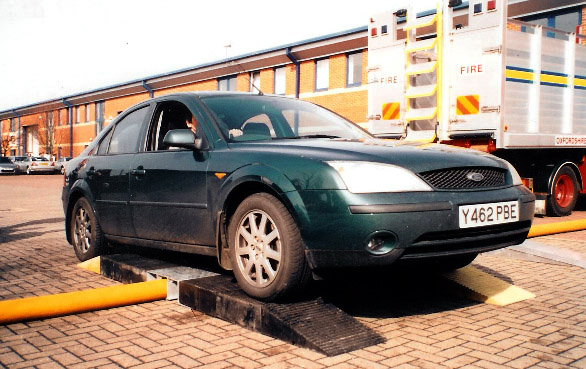

  Polymax rubber modular hose ramps, cable protectors Rubber Hose Ramp Protector

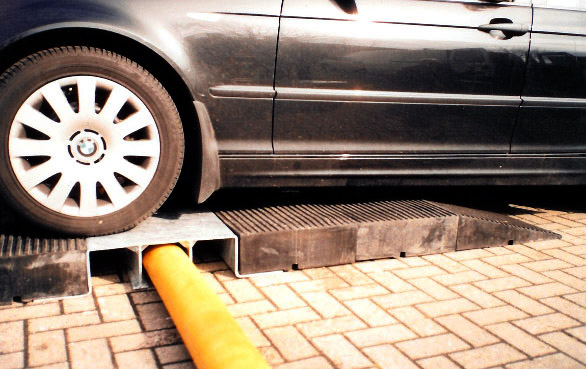

  Polymax rubber modular hose ramps, cable protectors Modular Hose Ramps
  Click images to enlarge...

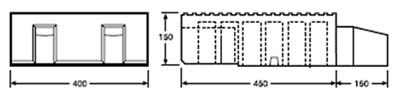

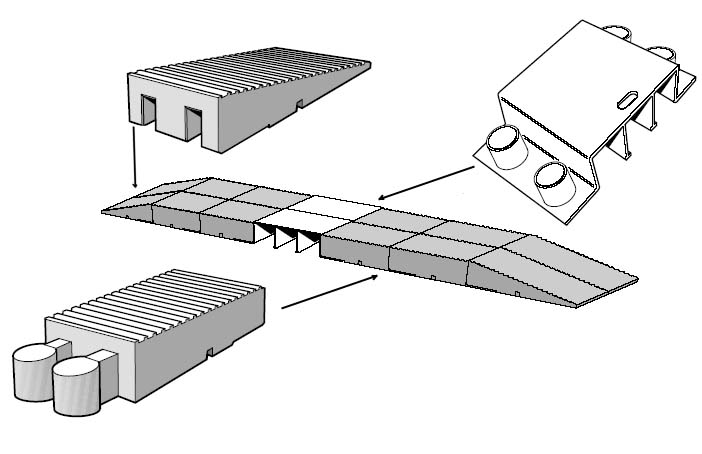

  End wedge ramp End wedge ramp diagram   Block ramp Block ramp diagram   Hose bridge ramp Hose bridge ramp Diagram


TECHNICAL PROPERTIES

Material : NR/SBR
Colour  : Black
Max. temp : up to +70°C (avoid prolonged exposure)
Min. temp : up to -10°C (avoid prolonged exposure)
  : Heavy Duty Aluminum Bridge Section
  : Two wedge sections, four block sections and one bridge section will be required to
  : attain sufficient ground clearance for cars.

Not availible to buy online
Article No. Description Width (mm) Length (mm) Height (mm)
6008500 End wedge ramp 400 550 150
Block ramp 400 450 150
Hose bridge ramp 400 820 150
