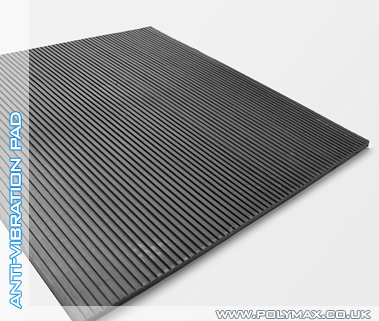

Anti Vibration Rubber Pad the Polymax ANCHOR Mat

Ideal Rubber Pads for Vibration Dampening

Polymax ANCHOR rubber pad is a specially compounded anti-vibration matt being used in machinery which generate vibrations in the high frequency range (including industrial fans and motors requiring secure attachments to the foundation) This mat has 5 mm wide ribs which run at an angle of 90° to each other on the two sides of the mat. This ensures a firm grip on the ground and a better friction ratio as compared to smooth rubber mats.

TECHNICAL PROPERTIES:

Article No.	Material	Thickness (mm)	Breadth (mm)	Length (mm)
1001304	NR	8	250	250
1001413	NR	8	500	500
1001376	NR	10	250	250
1001377	NR	10	500	500
1001414	NBR (Oil Resistant)	8	250	250
1001412	NBR (Oil Resistant)	8	500	500
1001305	NBR (Oil Resistant)	10	250	250
1001306	NBR (Oil Resistant)	10	500	500

Especially designed for washing machines:

Article No.	Material	Thickness (mm)	Breadth (mm)	Length (mm)
1001301 New!	NR	10	600	600


Material	: NR and NBR (Oil Resistant)
Colour	: Black
Hardness	: 50 Shore A
Max. temp	: +70°C/-10°C (avoid prolonged exposure)
Max. pressure	: 5 Kg/cm ² (Use multiple layers with metal interllevels to increase load bearing capacity)
Density	: 1.4 (gcm^- ³)
Tensile strength	: 7 MPa
Elongation at break	: 250%
Remarks	: Highlighted products are generally suitable for contact with
	: machine oil.



	Special Sizes: Sheets can be cut to your size requirements. Self-adhesive backing on one side is also possible. If you need fabric insertions or other special sizes please contact us, we are usually able to help.
