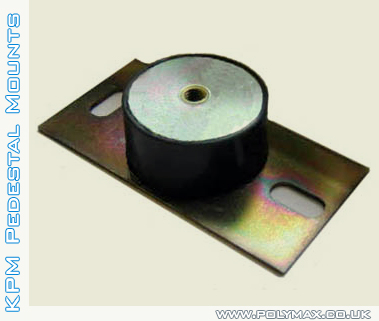

The KPM 16539 mount has a low profile combined with relatively high deflection.
Ideal for use on Generators, Compressors, Pumps and Hydraulic Power Packs, where height is a consideration.
Made from specially compounded natural rubber (NR)
Designed to achieve high damping under compressive loads
Polymax AD anti vibration mounts are capable of taking higher loads and have experimentally shown to have a higher fatigue life under cyclic compressive loading. M12 Bolt hole.
| Part Number | Shore A | Max Load | Max Deflection | Spring Rate | ||
| KPM 16539/1 | 45 | 250 Kg's | 5.5 mm | 45.5 kg/mm | ||
| KPM 16539/2 | 60 | 350 Kg's | 5.0 mm | 70.0 kg/mm | ||
| KPM 16539/3 | 70 | 500 Kg's | 5.0 mm | 100.0 kg/mm | ||
