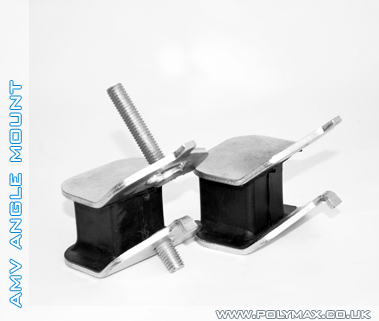

The AMV Angle Mount is the ultimate in Small Engine or Motor elastomeric focalised support.
They have very high deflection for a relatively small mounting, giving very high isolation 90% plus on 3,000 rpm engines. This also allows good isolation with low frequency motors.
The focalised suspension means that any movement of the piece of equipment, tends to be in rotation around it’s centre of gravity.
Type Φ D X H |
Threads
mm |
Hardness Shore A |
|||
45 |
60 |
||||
| Max (kg) |
Defin mm |
Max (kg) |
Defin mm |
||
| AMV3654M8 |
M8x15/M8C Clearance Hole |
40 |
9 |
90 |
9 |
| AMV3654MAS8 |
M8x15/M8x33 |
40 |
9 |
90 |
9 |
| AMV3654MAL8 |
M8x15/M8/40 |
40 |
9 |
90 |
9 |
