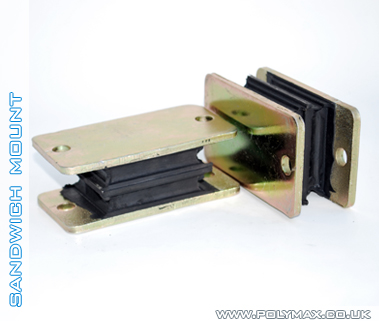

Sandwich mountings, suited to both compression and shear loading, can be made on 4 shore hardness value: 45, 50, 60 and 70 and four main sizes. Sandwich mountings are ideal heavier and larger applications than bobbins auch as inclined vehicle engine mountings, vehicle body mountings, shock mountings, conveyors, hoppers, contractors plant, machinery and lifts.
Part No |
A |
B |
K |
H |
D |
d |
t |
| SM10843 |
89 |
57 |
108 |
43 |
63.5 |
11 |
5 |
| SM16843
|
146 |
57 |
168 |
43 |
127 |
11 |
5 |
| 50 IRHD | 60 IRHD |
|||
| Part No | MAX Kg's | MAX mm | MAX Kg's | MAX mm |
| SM10843 | 180 | 3 | 360 | 3 |
| SM16843 |
450 |
3 |
900 |
3 |
