Home » Anti-Vibration Range » FMR Machinery Mounts

Polymax FMR Machinery Mounts

FMR Machinery Mounts

PROFILE DRAWING:

Part No	D	H	h	d	Range Kg's	Shore
FMR 48M8	48	23	40	M8	0-80	65
FMR 60M10	60	25	83	M10	50-120	65
FMR 75M12	75	30	90	M12	80-150	65
FMR 90M12	90	33	90	M12	120-300	65
FMR115M16	115	38	110	M16	250-500	65
FMR125M16	125	45	110	M16	400-800	65
FMR150M16	150	55	110	M16	600-1100	65
FMR170M16	170	57	110	M16	1000-1600	65
FMR187M20	187	70	115	M20	1400-2400	65
FMR210M20	210	75	115	M20	2000-3500	65

FMG and FMSS Machinery Foot

PROFILE DRAWING:

Part No	D	H	h	d	Range kg	Hardness Shore A
FMG40M8	40	15	40	M8	0-60	65
FMG63M10	63	18	83	M10	30-100	65
FMG70M12	70	22	90	M12	80-150	65
FMG90M12	90	25	90	M12	100-350	65
FMG106M16	106	29	110	M16	300-600	65
FMG127M16	127	33	110	M16	500-900	65
FMG150M16	150	39	110	M16	800-1500	65
FMG170M16	170	42	110	M16	1300-2000	65

Stainless Steel Version FMSS

Part No		D	H	h	d	Range kg	Hardness Shore A
FMSS40M8		40	15	40	M8	0-60	65
FMSS63M10	63	18	83	M10	30-100	65
FMSS70M12	70	22	90	M12	80-150	65
FMSS90M12	90	25	90	M12	100-350	65
FMSS106M16	106	29	110	M16	300-600	65
FMSS127M16	127	33	110	M16	500-900	65
FMSS150M16	150	39	110	M16	800-1500	65
FMSS170M16	170	42	110	M16	1300-2000	65

Polymax FMB Machinery Mount

PROFILE DRAWING:

Part No	D	H	d	h	Range kg	Hardness Shore A
FMB50M8	50	24	40	M8	0-100	75
FMB76M10	76	35	65	M10	100-350	75
FMB90M12	90	40	80	M12	350-600	75
FMB90M16	90	49	115	M16	600-900	75
FMB125M16	125	52	110	M16	1000-2500	75
FMB170M16	170	57	120	M16	2500-4000	75

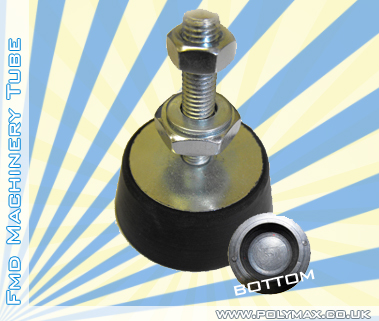

FMD Machinery Tube Anti Vibration Mounts

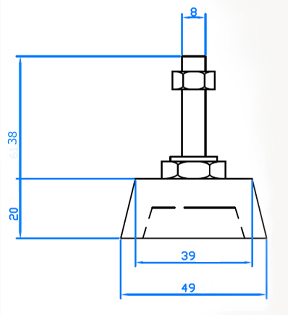

PROFILE DRAWING:

Part No	Max Load	Shore
FMD49M8	40	65

reduce shock and noise due to vibration that is structure borne

PROFILE DRAWING:

Part No	A	B	C	Stud Size (D)	Load Range Kg
FMS3215M8	32	15	38	M8	15-70
FMS4616M10	46	15	-	M10	25-200
FMS7025M12	70	25.5	55.5	M12	100-350

*Dimension can vary they are typical only
