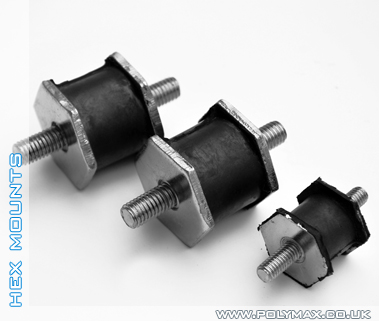

Hexagonal Anti Vibration Mounts
Typical applications for hexagonal bobbins include vehicle engine mountings, conveyors, hoppers, generator sets, fans and electronic instruments
Hexagonal 2 bolt bobbin mountings are available in four sizes with two hardness option as well as custom desings. Hexagonal bobbins are suited only to applications where the primary load is in vertical compression. Typical applications for hexagonal bobbins include vehicle engine mountings, conveyors, hoppers, generator sets, fans and electronic instruments. The hexagonal fittings allow for tightening with a spanner.
- Inclined vehicle engine mountings.
- Instrument panels.
- Shock mountings.
- Conveyers and hoppers.
- Generator sets.
- Fans and other instruments.
Polymax Ltd
Call: 01420 474123
Email: sales@polymax.co.uk
| Part No |
D |
H |
G |
L |
| AH1516M6 |
15.2 |
16 |
M6 |
15 |
| AH2119M6 |
20.7 |
19.0 |
M6 /M8 |
20 |
| AH2927M8 |
28.5 |
27 |
M8 |
17 |
| AH2923M8 |
28.5 |
23 |
M8 |
20 |
| AH3226M8 |
31.8 |
26.4 |
M8 |
16 |
| AH3222M8 |
31.8 |
22.2 |
M8 |
20 |
| AH3322M10 |
32.9 |
22.2 |
M10 |
25 |
| AH4225M10 |
42.3 |
25.4 |
M10 |
30 |
|
Compression Load |
| 45 IRHD |
60 IRHD |
| Part No |
MAX kg's |
MAX mm |
MAX kg's |
MAX mm |
| AH1516M6 |
3.75 |
0.8 |
7.5 |
0.9 |
| AH2119M6 |
8.0 |
1.2 |
16 |
1.2 |
| AH2927M8 |
14 |
2.0 |
28 |
2.0 |
| AH2923M8 |
14 |
1.8 |
14 |
1.8 |
| AH3226M8 |
16 |
2.0 |
32 |
2.0 |
| AH3222M8 |
30 |
1.5 |
60 |
1.5 |
| AH3322M10 |
30 |
1.5 |
60 |
1.5 |
| AH4225M10 |
55 |
1.7 |
110 |
1.7 |
*Dimension can vary they are
typical only
