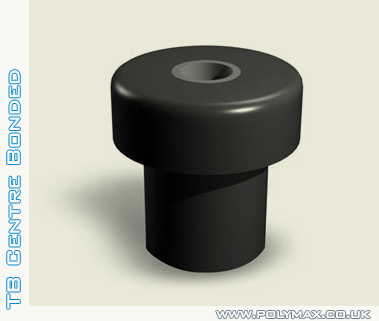

Center Bonded Mounts isolate vibration; reduce shock and noise due to vibration that is structure borne. This mount is a simple to install, compact failsafe mount capable of withstanding shock loads of 10g.
The TB series able to isolate vibration in all directions and is suitable for mobile and static operation.
| Part No | A | B | C | D | E |
| TB2818 | 20.1 | 17.5 | 10 | 27.7 | 5.6 |
| TB4525 | 31.5 | 25.4 | 13 | 44.5 | 10.4 |
| TB5133 | 34.3 | 35 | 13 | 50.8 | 13.5 |
| TB6445 | 41.1 | 44.5 | 16 | 63.5 | 15.7 |
| TB8423 | 38 | 23 | 16 | 84 | 16 |
| TB9551 | 56 | 50.8 | 20 | 95 | 25.4 |
| Part Number | *Max Axial Static Load kg | Maximum Deflection mm |
| TB2818 | 56 | .64 |
| TB4525 | 155 | 1.02 |
| TB5133 | 211 | 1.52 |
| TB6445 | 334 | 1.62 |
| TB8423 | 334 | 1.62 |
| TB9551 | 395 | 1.7 |
| Part Number | H(mm) +/- 0.03mm |
ID (mm) |
KD (mm) |
SD (mm) |
T(mm) +/- 0.03mm |
R(mm) +/- 0.015mm |
| TB2818 | 5.3 | 32 | 28-30 | 18.6 | 9 | 1.5 |
| TB4525 | 9.7 | 50 | 38-40 | 28.4 | 9.7 | 1.5 |
| TB5133 | 11.4 | 58 | 50-52 | 31.8 | 15.8 | 1.5 |
| TB6445 | 14.2 | 74 | 56-58 | 38.1 | 19.1 | 1.5 |
| TB8423 | 14.5 | 94 | 55-57 | 35.2 | 3 | 1.5 |
| TB9551 | 23.9 | 108 | 75-78 | 50.8 | 19.1 | 3 |
