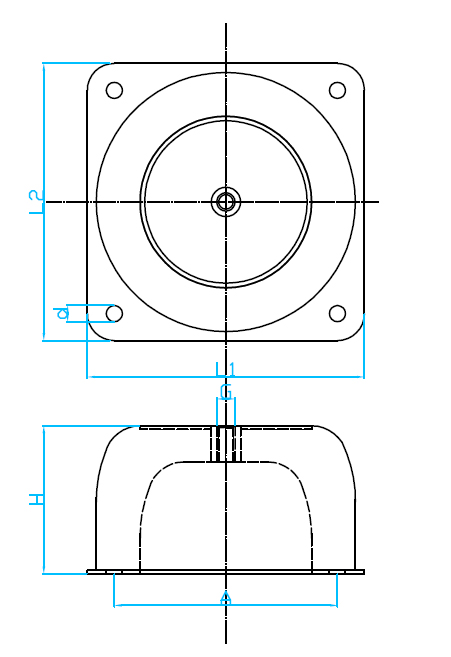

Part No |
H | L1 | L2 | G | A | d - dia | Shape |
| SCM 6420 |
20 | 64 | 43 | M6 | 50 | 7 | Oval |
| SCM 8525 |
25 | 88 | 59 | M8 | 66 | 8 | Oval |
| SCM8525M10 |
25 | 88 | 59 | M10 | 66 | 8 | Oval |
| SCM 10027 |
27 | 100 | 70 | M8 | 76 | 7 | Oval |
| SCM 10027/1 |
27 | 100 | 70 | M8 | 76 | 10 | Oval |
| SCM 11435 |
35 | 115 | 76 | M10 | 92 | 10 | Oval |
| SCM 13640 |
40 | 136 | 96 | M10 | 110 | 11.5 | Oval |
| SCM 15145 |
45 | 151 | 101 | M10 | 124 | 11.5 | Oval |
SCM15063 |
63 | 150 | 150 | M12 | 120 | 14.5 | Square |
| SCM 20085 |
85 | 200 | 200 | M16 | 160*160 | 14.5 | Square |
| SCM 310160 |
160 | 310 | 310 | M24 | 250*250 | 18 | Square |
| 45 IRHD | 60 IRHD | |||
| Part No | MAX Kg's | MAX mm | MAX Kg's | MAX mm |
| SCM6420 |
3.5 | 3 | 9 | 3.5 |
| SCM 8525 |
20 | 4 | 40 | 4.5 |
| SCM 8525M10 |
20 | 4 | 40 | 4.5 |
| SCM 10027 |
30 | 4.5 | 55 | 5.0 |
| SCM 10027/1 |
30 | 4.5 | 55 | 5.0 |
| SCM 11435 |
40 | 6.0 | 65 | 8.5 |
| SCM 13640 |
70 | 8.5 | 130 | 11 |
SCM 15063 |
280 | 500 | ||
| SCM 15145 |
130 | 10.0 | 220 | 10.0 |
| SCM 20085 |
380 | 18 | 750 | 18 |
| SCM 310160 |
1400 | 45 | 2500 | 50 |
