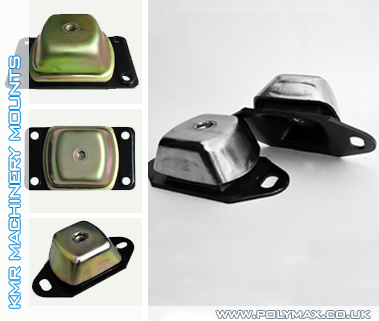

Polymax KMR Machinery Mount

The KMR mount was originally designed for mounting marine engines; therefore they can be used for many mobile and static applications.

Features include built in failsafe, a limiter for shock loads, and relatively high deflection for this type of mount isolating frequencies as low as 8Hz.

Forces from propeller thrust are accommodated in the design, however be aware that the maximum loads are reduced in marine applications, see table below.

APPLICATIONS (QUICK VIEW):

PROFILE DRAWING - TWO HOLE FIXING (QUICK VIEW):

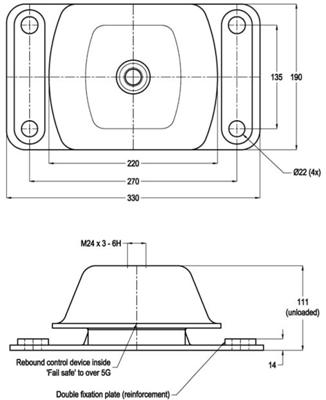

PROFILE DRAWING - FOUR HOLE FIXING (QUICK VIEW):

Part No	A	A1	B	C	E	F	G	H	Bolt Torque (Nm)
KMR330190	270	330	190	135	22	22	M24	112	265/290
KMR23070	182	230	112	80	25X18	18X33	M20	70	155/175
KMR18350	140	183	75	75	20X13	13X30	M16	50	100/115
KMR12040	100	120	60	60	11X14	11X14	M12	40	43/55

Technical Data

Part No	Hardness (IRHD)	Spring Rate (Kg/mm)	Max Longitudinal Thrust (N)	Max Load (Kg)	Max Def'n (mm)	Fixing Holes
KMR330190/1	40	108.3	5250	650	6	4
KMR330190/2	50	158.3	7200	950	6	4
KMR330190/3	60	266.6	13000	1600	6	4
KMR23070/1	45	70	2800	350	5	2
KMR23070/2	55	104	4200	520	5	2
KMR23070/3	65	160	6500	800	5	2
KMR23070/4	75	200	12000	1000	5	2
KMR18350/1	45	22.7	1000	150	6.6	2
KMR18350/2	55	36.2	1500	210	6.2	2
KMR18350/3	65	51.7	2300	300	5.8	2
KMR18350/4	75	84.9	3400	450	5.3	2
KMR12040/1	45	9.3	380	50	5.4	2
KMR12040/2	55	13.5	580	65	4.8	2
KMR12040/3	65	20.8	850	100	4.8	2

*Dimension can vary they are typical only
