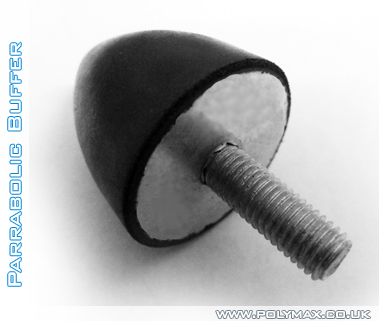

Parabolic Progressive Rubber Buffers

Ideal for use a progressive bump stops


Ideal for use a progressive bump stops

The DP buffers are highly deformable, which allows for a high degree of energy to be absorbed on impact. Parabolic buffer were originally design for progressive absorption of energy and example includes slowing the impacting object to a gradual stop on overhead Cranes


Features
  • Parabolic rubber profile, Low cost and easy to install buffers
  • Available in standard naterial rubber ans also in CR and NBR compound.
  • Also available in mild or stainless steel
Application
  • Small buffers are used to isolate panel doors on enclosed generators, compressors and pumps.
  • Small buffers are used for vehicle bonnets vibration isolators.
  • Large buffers are used for suspension of heavy containers on vehicles
  • Vibration Isolators for material handeling equipment




PROFILE DRAWING (QUICK VIEW): Drop Down
 Not availible to buy online
Product No Dimensions
D G H L Max Load Kg's
DP1010M5 10 M5 10 12 15
DP2015M6 20 M6 15 12 35
DP2020M6 20 M6 20 18 40
DP2024M6 20 M6 24 18 45
DP2520M6 25 M8 20 18 52
DP2520M8 25 M8 20 20 52
DP3030M6 30 M6 30 17 56
DP3030M8 30 M8 30 20 56
DP3036M8 30 M8 36 20 63
DP3224M8 32 M8 24 20 60
DP3540M8 35 M8 40 25 84
DP5048M10 50 M10 48 25 184
DP5058M10 50 M10 58 28 190
DP5061M10 50 M10 61 28 230
DP5068M10 50 M10 68 28 260
DP7058M12 70 M12 58 37 370
DP7060M12 70 M12 60 35 374
DP7559M12 75 M12 59 37 450
DP9074M16 90 M16 74 45 680
DP9580M16 95 M16 80 45 820
DP10895M12 108 M12 95 30 1800
DP108120M12 108 M12 120 30 2800

PROFILE DRAWING OF DD & ED: Drop Down

*Dimension can vary they are typical only
