KPM16539 Pedestal Anti vibration mount

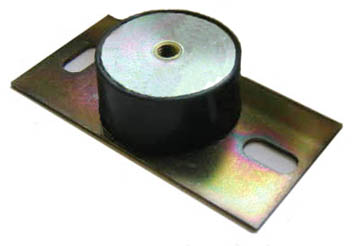

KPM Anti-Vibration Pedestal mount



The KPM 16539 mount has a low profile combined with relatively high deflection.

Ideal for use on Generators, Compressors, Pumps and Hydraulic Power Packs, where height is a consideration.

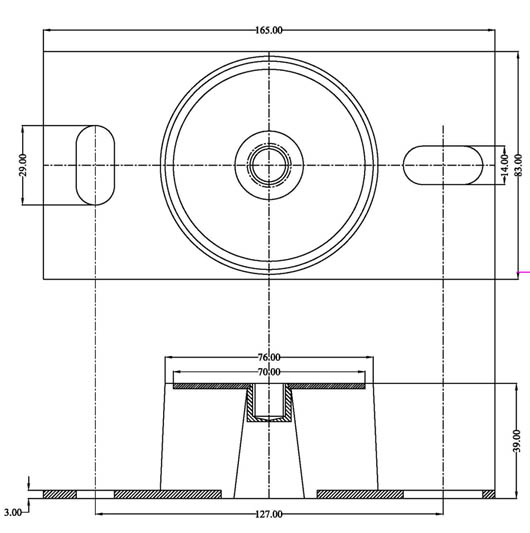

KPM Anti Vibration Pedestal mounts
Made from specially compounded natural rubber  (NR)

Designed to achieve high damping under compressive loads Polymax AD anti vibration mounts are capable of taking higher loads and have experimentally shown to have a higher fatigue life under cyclic compressive loading. M12 Bolt hole.

Application: Suitable for riddles, vibrators, concrete compactors etc.

Part Number Shore A Max Load Max Deflection Spring Rate
KPM 16539/1 45 250 Kg's 5.5 mm 45.5 kg/mm
KPM 16539/2 60 350 Kg's 5.0 mm 70.0 kg/mm
KPM 16539/3 70 500 Kg's 5.0 mm 100.0 kg/mm
