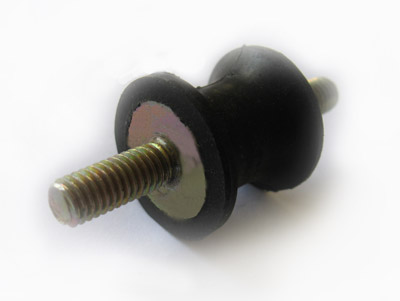

AD Shear Compression Mount




Anti-Vibration Shear mounting

Anti-Vibration Shear mountings

Made from specially compounded natural rubber  (NR)

Designed to achieve high damping under compressive loads Polymax AD anti vibration mounts are capable of taking higher loads and have experimentally shown to have a higher fatigue life under cyclic compressive loading

Application: Suitable for riddles, vibrators, concrete compactors etc.

SUFFIXES: 1 = 45 SHORE, 1.5 = 50 SHORE, 2 = 60 SHORE, 3 = 70 SHORE
Type
Φ D X H
G XL
Hardness Shore A
50
60
Maximum Load (kg)
Compn
Shear
Compn
Shear
AD1008M3
M3 x 6
3
1.2


 AD1010M4
M4 x 10
4
1


 AD1515M4
M4 x 10
8
3


AD2015M4
M 4 x 10
 12
 3.2


AD2018M6
M6 x 18
10
3


AD2020M6
M6 x 18
 12
 2.9


AD2030M6
M6 x 18
15
2.3


AD2520M6
M6 x 18
18
 4.2


AD2525M6
M6 x 20
24
7.8


AD3020M8
M8 x 20
 33 10


AD3022M8
M8 x 23
 34 8.2


AD3025M8
M8 x 20
 40 9

AD3838M10
M10 x 25
 50 15
65
19.5
AD4030M8
M8 x 23
 45 10


AD4048M8
M8 x 23
 42 8


AD4625M10
M10x28
 63 18


AD5030M10
M10x28
 84 24


AD5545M10
M10x28
 60 20


AD5744M10
M10x28
 70 20


AD5745M10
M10x28
 68 19


AD6036M10
M10 x 30
 90 31


AD6060M10
M10x28
 110 22


AD7053M12
M12x28
 137 34


AD8065M14
M14 x 35
 350 70


AD9077M16
M16 x 45
 350 68


AD9575M16
M16x41
 400 70


AD13096M16
M16 x 45
290
 60


AD18075M20
M20x45
490
98
