Universal Mounts KPUM

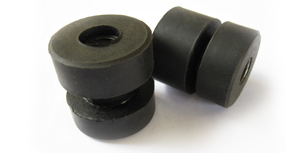

Universal Anti Vibration Mounts
Features:
Available in NR and Chloroprene.
Consists of 2 parts; a rubber ring and a rubber bush bonded to a central metal spacer.
Load range from 80 to 450 kg.
Dynamic vertical movements are restricted and excellent stability is provided horizontally.
Dynamic efficiency in all directions.
It can accommodate distortion and misalignment.
Operating temperature range is -30 C to 100 C.
Easy installation.
Low cost.

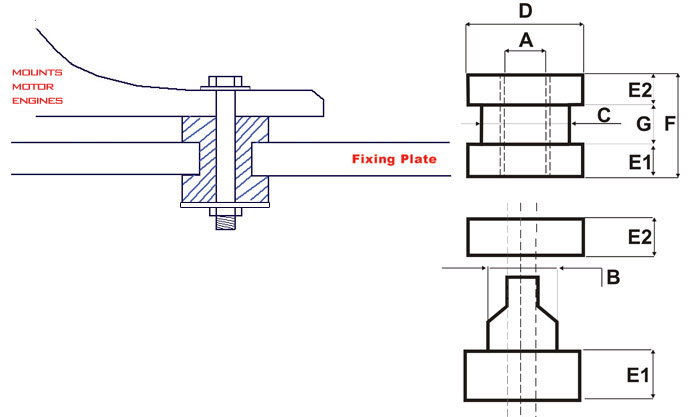

KPUM Universal mounting




A
D
F
G
E
B
C
45 Shore
60 Shore A
KPUM3232
10.0
32
32
10
12/13
19.3
20
40
113
KPUM3232M
10.0
32
32
5
12/17.5
19.3
20
35
100

KPUM4752

13.5

47

52.2

12-14

20

33

31.75

79

172

KPUM6463

16.0

64

62

19-22

23

40

38.1

159

390

KPUM9075

23.7

89

73

25

23

58.4

57.5

231

531
