KPR Anti vibration mountings


KPR Anti Vibration Mounts

KPR Anti Vibration Mount

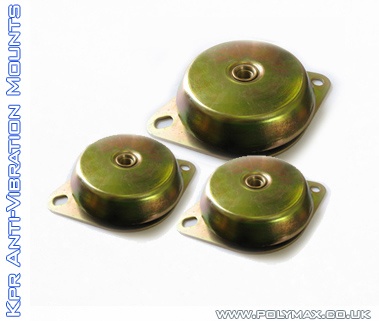

This is a flanged mounting which uses rubber in shear and compression. It is suitable for all types of applications; especially mobile applications where a fail-safe mounting is essential. Thick base flange ensures a long fatigue life even under reverse loading.

Features:
Compact design.
Tight tolerances on dynamic stiffness rate for accurate vibration calculations.
Fail-safe and rugged interlocking of metal and elastomer make the mount flexible vertically and stable horizontally.
Dome shaped metal cover protects elastomer against oil contamination.
The elastomer in compression design, along with the metal cup effectively blocks noise and eliminates sound-board amplification effects.
Thick base flange ensures a long fatigue life.
Easy and effective attachment to the supporting equipment through holes on each side of the flange.
The metal components are corrosion protected to cope with hostile environments in land and marine applications.
High vibration damping.
Wide load rating options, 40-2100 kg.

Available with stainless steel or mild steel parts.

Applications:
Static and Mobile Generator Sets.
Pumps and Centrifuges.
Fans and Blowers.
Compressors.
Numerical Control Equipment.
Combustion Engines.
Marine engines and Gearboxes.
Railroad Equipment.
Presses and Punches.                                                                                                              Cabs (not ROPS/FOPS)

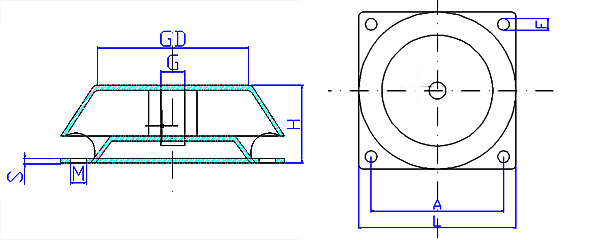

Part No
L
H
A
F*(m)
D
GD
S
G
KPR 11035
110
35
73-90
8.3*16
65
50
3.0
M12
KPR 10635
106
35
75-90
8.3*16
60
38
2.0
M 12
KPR 10631
106
31
75-90
8.3*16
60
50
3.0
M 12
KPR 12035S
120
35.3
100
11.0
63.5
2.0
M12
KPR 12830
128
30
110
9.0
77
59
2.0
M 10
KPR 12845
128
45
110
10.5
92
73.5
3.0
M 12
KPR 14436
144
36
124
10.0
93
70
2.5
M 10
KPR 16940S
169
40
140
14*19
105
77
3.0
M16
KPR 17238
172
38
138-46
14*18
106
81
3.0
M 16
KPR 19050
190
50
160
16.5
108
83
5.0
M 16
KPR 18050
180
50
150
16.5
108
83
6.0
M 16
KPR 19241
192
40.5
158
14.0
115
90
3.0
M 16
KPR 21648
216
48
182
14*19
145
118
4.0
M 16
KPR 21652S
216
52
182
14*19
155
134
4.0
M16
KPR 19066
(Square Base Flange)
190*190
66.5
160
14.0
181
140
4.0
M 20



Load-Deflection details 45 IRHD 60 IRHD 70 IRHD
Part No MAX kg's MAX mm MAX kg's MAX mm MAX  kg's MAX mm
KPR 11035 70 3.5 105 3.5 130 3.5
KPR 10635 175 3.2 280 3.0
KPR 10631 160 3.0 300 2.7
KPR 12035S 60 4.0 100 4.2
KPR 12830 120 3.1 280 2.9
KPR 12845 350 3.8 600 3.3 750 3.0
KPR 14436 175 3.9 400 3.0
KPR 16940S 200 4.8 400 4.8
KPR 17238 275 3.3 500 2.9
KPR 19050 400 3.3 830 3.0 1400 2.6
KPR 18050         1900 2.5
KPR 19241 425 4.0 690 3.5
KPR 21648 750 5.5 1100 5.0
KPR 21652S 480 12 800 10
KPR 19066 1500 9.0 2300 8.0 3200 6.4
