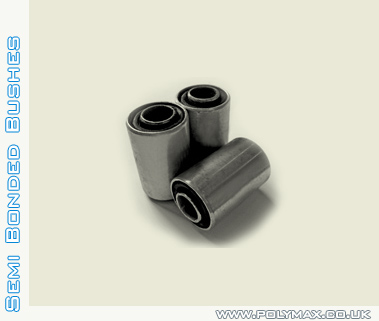

- Consists of 2 concentric sleeves with rubber securely bonded between them.
- Designed to take up axial and radial loads as well as torsional movements.
- Rubber is pre stressed to give maximum dynamic strength and durability.
- Bonded rubber takes up all the movement.
- Sleeves have excellent sound and vibration isolation capacity.
- Lubrication or any other bearing maintenance not required.
- Cars and trucks.
- Tractors and agricultural machinery.
- Bulldozers.
- Railway carriages.
- Vibratory screens.
- d 10± 0.2, 15± 0.15, 20-25± 0.08, 30± 0.5, 35-40± 0.2, 45-50 ± 0.25.
- D +0.25
+0.05 with chamfer at one end.
- L ± 0.5
- H +0
-0.2
Polymax Ltd
Call: 01420 474123
Email: sales@polymax.co.uk
| Article No. |
Dimensions in mm |
Axial load |
Radial load |
| |
d |
D |
L1 |
L2 |
F (KgF) |
R (KgF) |
| KPSB200814 |
8.20 |
20.00 |
14.00 |
21.00 |
48.4 |
61.60 |
| KPSB200815 |
8.20 |
20.00 |
15.00 |
19.00 |
51.8 |
66.00 |
| KPSB320834 |
8.20 |
32.00 |
34.00 |
40.00 |
173.0 |
220.0 |
| KPSB221015 |
10.00 |
22.00 |
15.00 |
17.00 |
65.9 |
84.00 |
| KPSB221030 |
10.00 |
22.00 |
30.00 |
33.00 |
131.9 |
168.0 |
| KPSB241024 |
10.00 |
24.00 |
24.00 |
24.00 |
79.1 |
100.8 |
| KPSB241034 |
10.00 |
24.00 |
34.00 |
41.00 |
149.4 |
190.4 |
| KPSB301231 |
12.00 |
30.00 |
34.00 |
44.00 |
170.8 |
217.6 |
| KPSB321234 |
12.00 |
32.00 |
34.00 |
40.00 |
170.8 |
217.6 |
| KPSB401258 |
12.00 |
40.00 |
58.00 |
66.00 |
291.4 |
371.2 |
| KPSB301340 |
13.00 |
30.00 |
40.00 |
40.00 |
210.0 |
234.0 |
| KPSB271440 |
14.00 |
27.00 |
40.00 |
48.00 |
240.0 |
260.1 |
| KPSB271450 |
14.00 |
27.00 |
50.00 |
56.00 |
282.6 |
360.0 |
| KPSB301425 |
14.00 |
30.00 |
25.00 |
28.00 |
190.4 |
223.5 |
| KPSB301433 |
14.00 |
30.00 |
33.00 |
44.00 |
186.52 |
237.6 |
| KPSB301463 |
14.28 |
30.16 |
63.50 |
69.85 |
364.48 |
464.31 |
| KPSB301485 |
14.28 |
30.16 |
85.90 |
91.60 |
493.06 |
628.1 |
| KPSB321450 |
14.00 |
32.00 |
50.00 |
54.00 |
314.0 |
400.0 |
| KPSB321454 |
14.30 |
31.70 |
50.00 |
57.15 |
282.6 |
360.0 |
| KPSB311457 |
14.30 |
31.70 |
57.60 |
62.00 |
325.60 |
414.7 |
| KPSB551530 |
15.50 |
55.00 |
30.00 |
16.00 |
140.00 |
200.0 |
| KPSB311462 |
16.00 |
32.00 |
28.00 |
32.00 |
193.40 |
246.4 |
| KPSB361630 |
16.00 |
36.00 |
30.00 |
38.00 |
188.4 |
240.0 |
| KPSB361635 |
16.00 |
36.00 |
35.00 |
38.00 |
219.8 |
280.0 |
| KPSB461660 |
16.00 |
46.00 |
60.00 |
67.00 |
376.8 |
480.0 |
| KPSB461660 |
16.00 |
46.00 |
60.00 |
82.00 |
376.8 |
480.0 |
| KPSB341832 |
18.00 |
34.00 |
32.00 |
36.00 |
221.06 |
281.6 |
| KPSB461860 |
18.00 |
46.00 |
60.00 |
67.00 |
414.5 |
528.0 |
| KPSB421938 |
19.10 |
42.85 |
38.00 |
41.00 |
380.0 |
298.3 |
| KPSB452060 |
20.00 |
45.00 |
60.00 |
63.00 |
490.1 |
585.0 |
| KPSB462060 |
20.00 |
46.00 |
60.00 |
67.00 |
471.0 |
600.0 |
| KPSB552090 |
20.00 |
55.00 |
90.00 |
94.00 |
809.2 |
900 |
| KPSB502090 |
20.10 |
50.50 |
90.00 |
95.00 |
847.8 |
1080 |
| KPSB422257 |
22.00 |
42.80 |
57.00 |
63.50 |
483.25 |
615.6 |
| KPSB462276 |
22.40 |
46.60 |
76.00 |
78.50 |
677.7 |
863.4 |
| KPSB442477 |
24.00 |
44.50 |
77.00 |
79.50 |
725.3 |
924.0 |
| KPSB502465 |
24.00 |
50.50 |
65.00 |
71.00 |
612.3 |
78.10 |
| KPSB502490 |
24.10 |
50.50 |
90.00 |
95.00 |
847.8 |
1080 |
| KPSB402520 |
25.00 |
40.00 |
20.00 |
20.00 |
330.0 |
280.4 |
| KPSB402530 |
25.00 |
40.00 |
30.00 |
30.00 |
325.4 |
271.4 |
| KPSB502565 |
25.00 |
50.00 |
65.00 |
68.00 |
480.6 |
585.0 |
| KPSB603055 |
30.00 |
60.00 |
55.00 |
68.00 |
500.12 |
528.4 |
