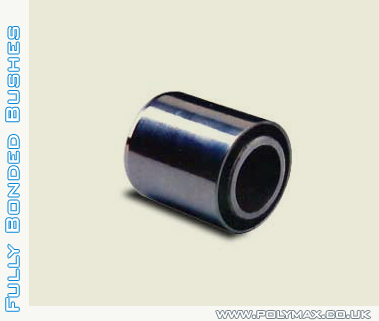

- Consists of 2 concentric sleeves with rubber securely bonded between them.
- Designed to take up axial and radial loads as well as torsional movements.
- Rubber is pre stressed to give maximum dynamic strength and durability.
- Bonded rubber takes up all the movement.
- Sleeves have excellent sound and vibration isolation capacity.
- Lubrication or any other bearing maintenance not required.
- Cars and trucks.
- Tractors and agricultural machinery.
- Bulldozers.
- Railway carriages.
- Vibratory screens.
- d 10± 0.2, 15± 0.15, 20-25± 0.08, 30± 0.5, 35-40± 0.2, 45-50 ± 0.25.
- D +0.25
+0.05 with chamfer at one end.
- L ± 0.5
- H +0
-0.2
Polymax Ltd
Call: 01420 474123
Email: sales@polymax.co.uk
| Article No. |
Dimensions in mm |
Axial load |
Radial load |
| |
d |
D |
L1 |
L2 |
F (N) |
R (N) |
| KPCB2009 |
9.50 |
20.60 |
19.00 |
22.00 |
282 |
953 |
| KPCB2611 |
11.10 |
26.03 |
32.00 |
36.00 |
461 |
1923 |
| KPCB2612 |
12.10 |
26.03 |
32.00 |
36.00 |
461 |
1923 |
| KPCB3816 |
16.00 |
38.00 |
64.00 |
72.00 |
1630 |
4621 |
